- Tuner & Demodulation
- Tuner Type: DVB-T2
- Frequency Range: 108MHz~862MHz
- RF Input Level: "-80dBm to -20dBm"
- Antenna power output: DC 5V at max 75mA, Overload protection
- Demodulation: COFDM 1K, 2K, 4K, 8K normal
- and extended, 16K normal and extended,
- 32K normal and extended
- Input Symbol Rate: 1.0 ~ 7.0Ms/s
- Constellations: QPSK, 16QAM, 64QAM
- Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
- Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6
- MPEG TS A/V Decoding
- Transport Stream: MPEG-2, MPEG-4 (H.264)
- Input Rate: Max.120Mbit/s
- Aspect Radio: 4:3, 16:9, Letter Box
- Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
- Video Resolution: 720*480p/i, 720*576p/i,1280*720p, 1920*1080p/i
- Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby Digital
- Audio Mode: Left / Right / Stereo/ Mono
- Sampling Rate: 32, 44.1 and 48KHz
- System Resources
- Main Processor: 594 MHz based CPU
- Flash Memory: 32MBits
- DDR RAM: 512Mbits
- A/V & Data Input/Output
- USB: One USB 2.0 slot Compatible
- HD out: VER1.3, Type A, Dolby Digital Bit-Stream Output
- SCART: CVBS Video & Audio L/R output
- Physical Speci_cations
- Size[W*H*D]: 130mm*65mm*30mm
- Net Weight: 0.10 Kg
- Operation Temperature: 0°C~+45°C
- Storage Temperature: -10°C~+70°C
- Storage Humidity: 5%~95% RH (Non-Condensing)
- Tuner & Demodulation
- Tuner Type: DVB-T2
- Frequency Range: 108MHz~862MHz
- RF Input Level: "-80dBm to -20dBm"
- Antenna power output: DC 5V at max 75mA, Overload protection
- Demodulation: COFDM 1K, 2K, 4K, 8K normal
- and extended, 16K normal and extended,
- 32K normal and extended
- Input Symbol Rate: 1.0 ~ 7.0Ms/s
- Constellations: QPSK, 16QAM, 64QAM
- Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
- Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6
- MPEG TS A/V Decoding
- Transport Stream: MPEG-2, MPEG-4 (H.264)
- Input Rate: Max.120Mbit/s
- Aspect Radio: 4:3, 16:9, Letter Box
- Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
- Video Resolution: 720*480p/i, 720*576p/i,1280*720p, 1920*1080p/i
- Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby Digital
- Audio Mode: Left / Right / Stereo/ Mono
- Sampling Rate: 32, 44.1 and 48KHz
- System Resources
- Main Processor: 594 MHz based CPU
- Flash Memory: 32MBits
- DDR RAM: 512Mbits
- A/V & Data Input/Output
- USB: One USB 2.0 slot Compatible
- HD out: VER1.3, Type A, Dolby Digital Bit-Stream Output
- SCART: CVBS Video & Audio L/R output
- Physical Speci_cations
- Size[W*H*D]: 130mm*65mm*30mm
- Net Weight: 0.10 Kg
- Operation Temperature: 0°C~+45°C
- Storage Temperature: -10°C~+70°C
- Storage Humidity: 5%~95% RH (Non-Condensing)
Hasonló termékek
Csomagajánlatok
Adatok
Gyártói cikkszám

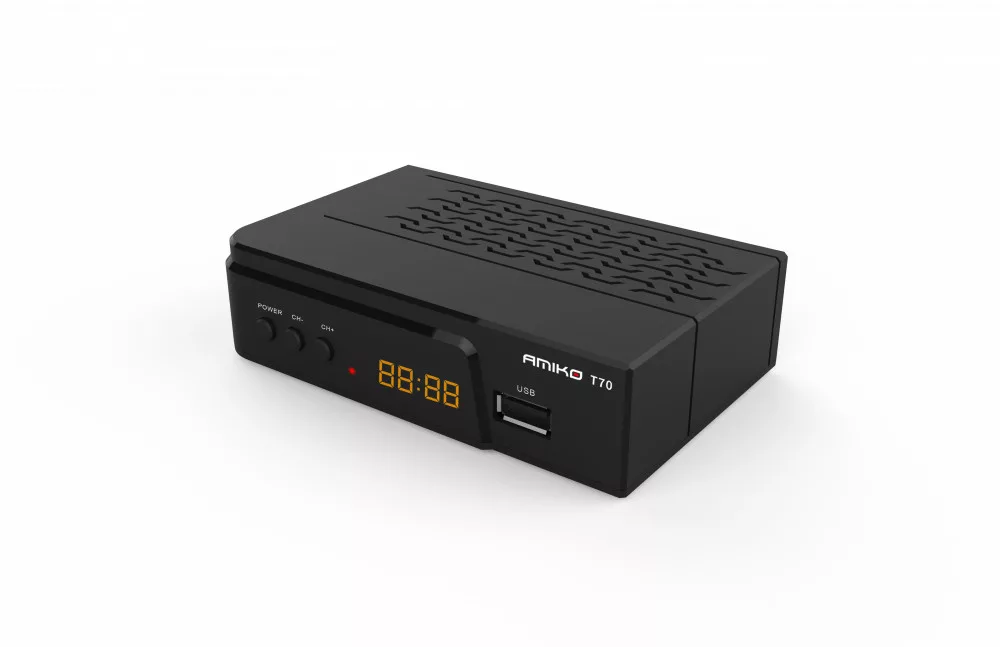

Amiko T70
Gyártó
Amiko
Szín
fekete
Fogható műsorok
Ingyenes csatornák
Csatlakozók
HDMI, SCART, RF
Készlet
NINCS
Tömeg
1 kg/db
